Air Velocity Transmitter
Product Name: AVU | Brand: Dwyer
Range | Accuracy | Output signal | Power requirement | Datasheet |
---|---|---|---|---|
0-4 m/s | ±5% of FS | 4 to 20 mA or 0 to 10 VDC | 24 VDC +10% – 15% | View Pdf |
Product Name: AVU | Brand: Dwyer
Range | Accuracy | Output signal | Power requirement | Datasheet |
---|---|---|---|---|
0-4 m/s | ±5% of FS | 4 to 20 mA or 0 to 10 VDC | 24 VDC +10% – 15% | View Pdf |

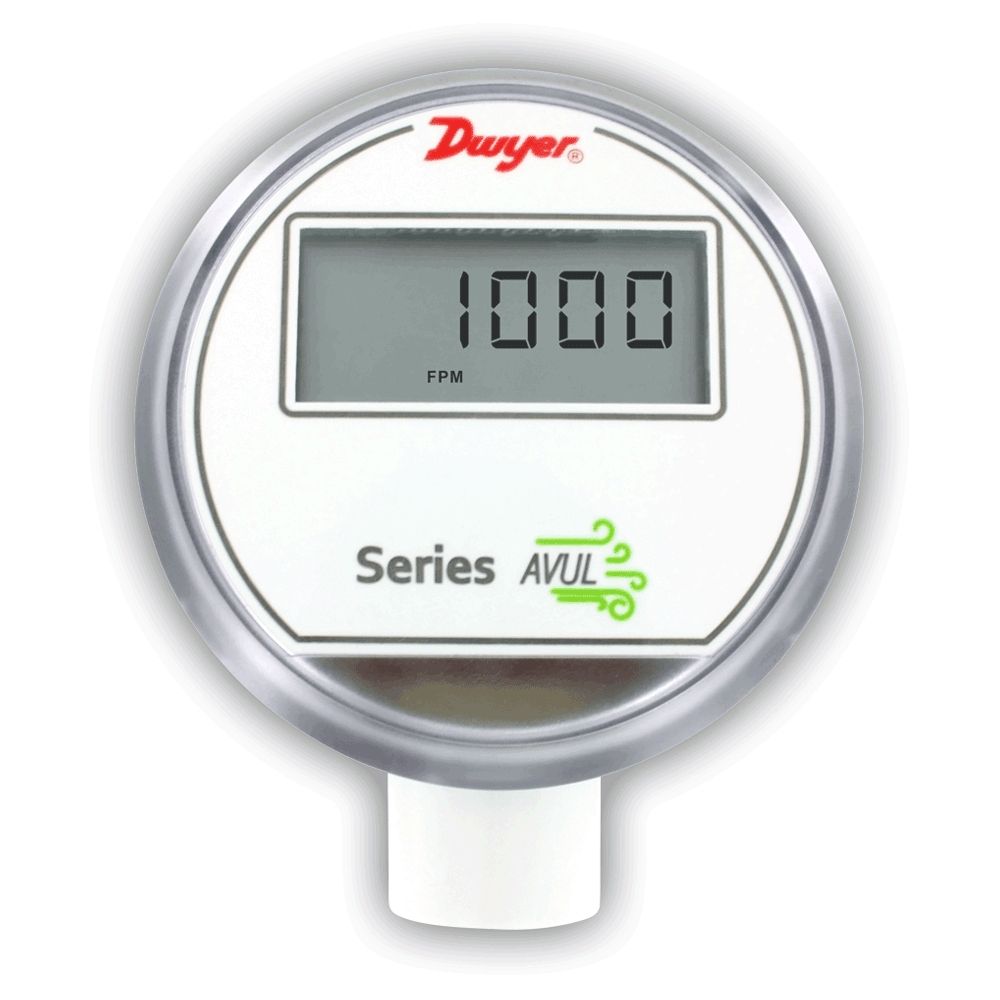

Product Name: AVUL | Brand: Dwyer
Range | Accuracy | Output signal | Power requirement | Datasheet |
---|---|---|---|---|
1000, 2000, 3000, 4000 FPM (5, 10, 15, 20 m/s); field selectable. | ±(5% of reading + 0.2 m/s) Or, ±(3% of reading + 0.2 m/s) | 4 to 20 mA, 0 to 5 VDC, 0 to 10 VDC | 24 VDC ±20% or 24 VAC ±20%. | View Pdf |
Product Name: 641RM-LCD | Brand: Dwyer
Range | Accuracy | Output signal | Power requirement | Datasheet |
---|---|---|---|---|
250 FPM (1.25 MPS) to 15,000 FPM (75 MPS). | 3% FS Process gas | 4 to 20 mA, 3 or 4-wire connection. | 12 to 35 VDC, 10 to 16 VAC |
Product Name: CTV-210 | Brand: Kimo
Range | Accuracy | Output signal | Power requirement | Datasheet |
---|---|---|---|---|
speed: 0 to 30 m/s Temperature: 0 to +50°C | From 0 to 3 m/s: ±3% of reading ±0.03 m/s From 3 to 30 m/s: ±3% of reading ±0.1 m/s | 0-5/10 V or 0/4-20 mA | 24 Vac/Vdc or 100-240 Vac | View Pdf |
