Product Name: CPE 310 | Brand: Kimo
| Range | Accuracy | Output signal | Power requirement | Datasheet |
|---|---|---|---|---|
| Input for interchangeable probe: Air velocity, CO, CO2, Differential pressure, Humidity, Temperature Pressure: -1000 to +1000 Pa Humidity: 0 to 100% RH Temp.: -40 to +180°C Co2: 0 to 20 000 ppm CO: 0 to 500 ppm | Depend on probe requested | 3 analogue outputs 0-5/10 V or 0/4-20 mA | 3 analogue outputs 0-5/10 V or 0/4-20 mA | View Pdf |

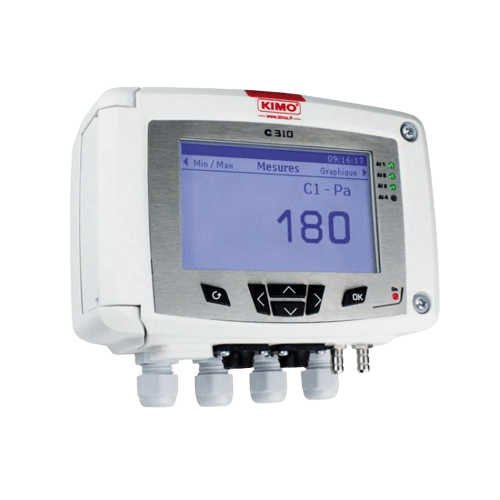

Product Name: C310 | Brand: Kimo
| Range | Accuracy | Output signal | Power requirement | Datasheet |
|---|---|---|---|---|
| Input for interchangeable probe: Air velocity, CO, CO2, Differential pressure, Humidity, Temperature Air velocity: -5 to 35 m/sec Airflow: 0 to 99 999 m³/h Pressure: -100 to +10000 Pa Humidity: 0 to 100% RH Temp.: -40 to +180°C Co2: 0 to 20 000 ppm CO: 0 to 500 ppm | Depend on probe requested | Two analogue outputs 0-5/10 V or 0/4-20 mA | 24 Vac / Vdc ±10% 100-240 Vac, 50-60 Hz | View Pdf |
