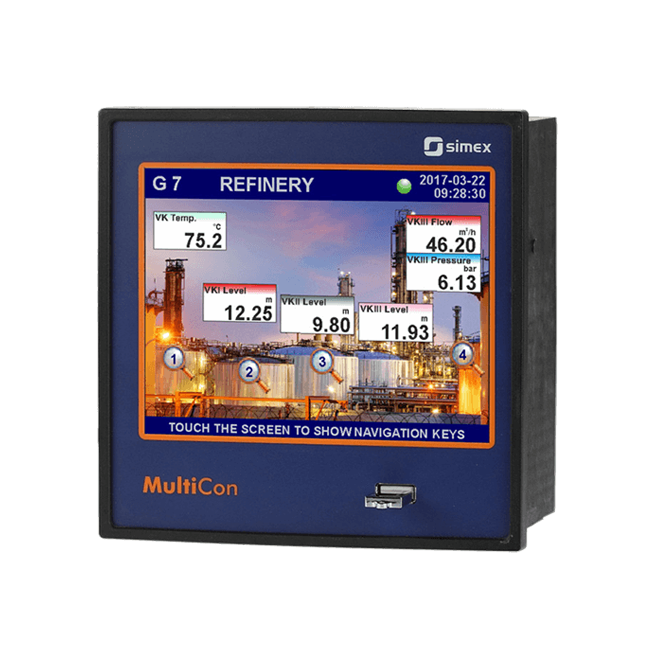

Meter + Controller + Recorder + HMI + SCADA in one package
Product Name: CMC-99 | Brand: Simex
| Size | Input No. & type | Input Range | Output Type | Recording Capacity | Data Sheet |
|---|---|---|---|---|---|
| Display: Colour LCD 3.5″” Graphic TFT, 16-bit colour, 320 x 240 pixels, with touch screen Case: panel, compact device in 96 x 96 mm | 48 Inputs depends on configuration: 9 universal inputs max. 48 analogue inputs max. 48 digital inputs max. 24 TC inputs max. 12 RTD inputs max. 12 counter / flowmeter / ratemeter inputs max. 1 digital input 24V DC mixed: analogue-NTC temperature mixed: analogue-digital | Current: 0/4…20 mA Milivoltage: -10…25 mV, -10…100 mV, 0…600 mV, ±25 mV, ±100 mV Voltage: 0/1…5V, 0/2…10V Resistance: 0…300Ω, 0…3kΩ Thermoresistance: Pt100, Pt500, Pt1000 (PN-EN): -100…600°C, Pt’50, Pt’100, Pt’500 (GOST): -200…600°C, Ni100, Ni500, Ni1000 (PN-EN): -60…180°C, Cu50, Cu100: -50…200°C, Cu’50, Cu’100 (GOST): -200…200°C Thermocouple: TC K: -200…+1370°C, S: -50…+1768°C, J: -210…+1200°C, T: -200…+400°C, N: -200…+1300°C, R: -50…+1768°C, B: +250…+1820°C, E: -200…+1000°C 0-20 (1/sec.), 0-20 (1/min.), 0-20 (1/h) 4-20 (1/sec.), 4-20 (1/min.), 4-20 (1/h) | depends on configuration: 8 analogue 4…20 mA max. 16 relay 1A/250V max. 4 relay 5A/250V max. 48 SSR max. 24V DC | Data recording: with maximum speed 10Hz (ten samples per second) Data memory: 4 GB internal | View PDF |
