Panel Meters

PUR-44D

PID Controller

Product Name: PUR-44D | Brand: Simex

Size	Input No. & type	Input Range	Output Type	Data Sheet
Display: LED, dual: 4 x 9 mm (PV) + 4 x 7 mm (SV), red/green or green/red Case: 48 x 48 x 100 mm	1 Universal Input	Current: 0/4…20 mA Milivoltage: 0…60 mV, 0…75 mV, 0…100 mV, 0…150 mV Voltage: 0/1…5V, 0/2…10V Resistance: 0…300Ω, 0…3kΩ Thermoresistance: Pt100, Pt500, Pt1000: -100…+600°C Thermocouple: TC K: -200…+1370°C, S: -50…+1768°C, J: -210…+1200°C, T: -200…+400°C, N: -200…+1300°C, R: -50…+1768°C, B: +250…+1820°C, E: -200…+1000°C	depends on configuration: relay 5A/250V AC (resistance) relay 3A/250V AC (reactance) Open Collector: I=30 mA, U=30V DC, P=100 mW 0/4…20 mA: active current, operating range 0…24 mA max., load resistance 700 Ω max., resolution 13 bit 4…20 mA: passive current, isolated, operating range 2,8…24 mA max., load resistance 600 Ω@24VDC, resolution 13 bit 0/1…5V, 0/2…10V: active voltage, operating range 0…11V max., load resistance min. 2000 Ω, resolution 13 bit	View PDF

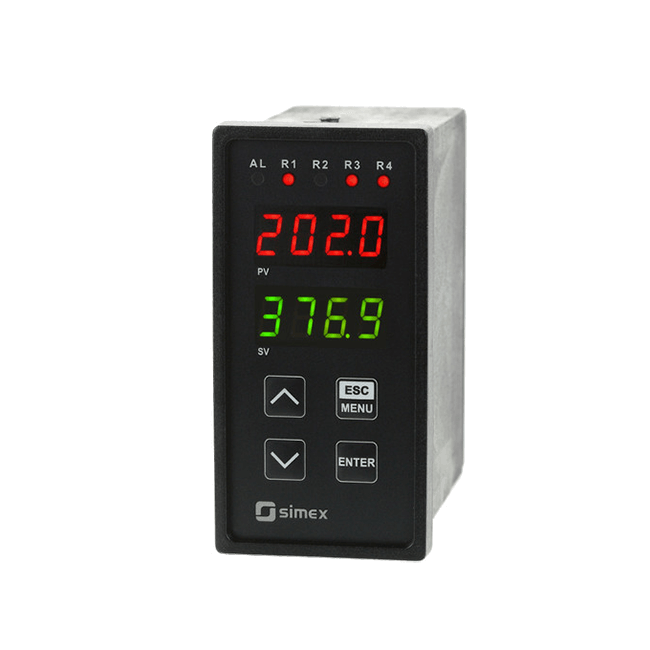

PID-PUR-49

PID Controller

Product Name: PUR-49D | Brand: Simex

Size	Input No. & type	Input Range	Output Type	Data Sheet
Display: LED, dual: 4 x 9 mm (PV) + 4 x 9 mm (SV), red/green or green/red Case: 48 x 96 x 100 mm	1 Universal Input	Current: 0/4…20 mA Voltage: 0/1…5V, 0/2…10V milivoltage: 0…60 mV, 0…75 mV, 0…100 mV, 0…150 mV Thermoresistance: Pt100, Pt500, Pt1000: -100…+600°C Thermocouple: TC K: -200…+1370°C, S: -50…+1768°C, J: -210…+1200°C, T: -200…+400°C, N: -200…+1300°C, R: -50…+1768°C, B: +250…+1820°C, E: -200…+1000°C 0…300Ω, 0…3kΩ	depends on configuration: relay 5A/250V AC (resistance) relay 3A/250V AC (reactance) Open Collector: I=30 mA, U=30V DC, P=100 mW 0/4…20 mA: active current, operating range 0…24 mA max., load resistance 700 Ω max., resolution 13 bit 4…20 mA: passive current, isolated, operating range 2,8…24 mA max., load resistance 600 Ω@24VDC, resolution 13 bit 0/1…5V, 0/2…10V: active voltage, operating range 0…11V max., load resistance min. 2000 Ω, resolution 13 bit	View PDF

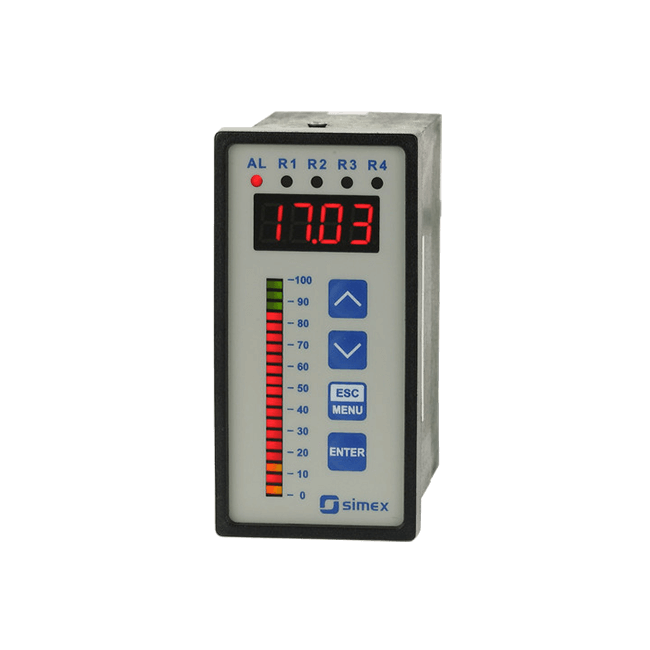

Process Meter With Bargraph

Product Name: SRL-49 | Brand: Simex

Size	Input No. & type	Input Range	Output Type	Data Sheet
Display: LED, 4 x 9 mm, red, 20-points bargraph, red-green Case: 48 x 96 x 100 mm	current (mA) voltage (V)	0/4…20 mA 0/1…5V, 0/2…10V	depends on configuration: relay I=1A, U=30V DC/250V AC (cosø=1) Open Collector: I=30 mA, U=30V DC, P=100 mW 0/4…20 mA: active current, operating range 0…24 mA max., load resistance 700 Ω max., resolution 13 bit 4…20 mA: passive current, isolated, operating range 2,8…24 mA max., load resistance 600 Ω@24VDC, resolution 13 bit 0/1…5V, 0/2…10V: active voltage, operating range 0…11V max., load resistance min. 2000 Ω, resolution 13 bit	View PDF

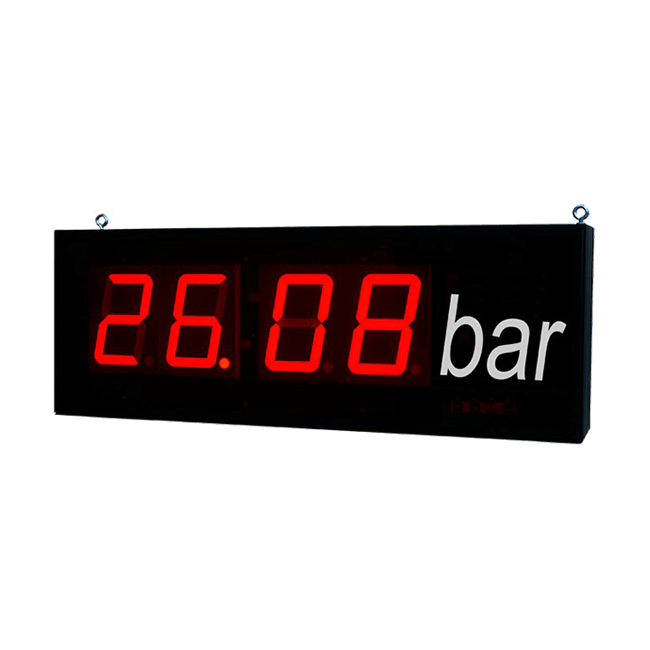

SUR-W410_bar

Large Size Universal Meter

Product Name: SUR-W410 | Brand: Simex

Size	Input No. & type	Input Range	Output Type	Data Sheet
Display: LED, 4 x 100 mm, red Case: 578 x 208 x 102 mm	1 Universal Input	Current: 0/4…20 mA MiliVoltage: 0…60 mV, 0…75 mV, 0…100 mV, 0…150 mV Voltage: 0/1…5V, 0/2…10V Resistance: 0…300Ω, 0…3kΩ Thermoresistance: Pt100, Pt500, Pt1000: -100…+600°C Thermocouple: TC K: -200…+1370°C, S: -50…+1768°C, J: -210…+1200°C, T: -200…+400°C, N: -200…+1300°C, R: -50…+1768°C, B: +250…+1820°C, E: -200…+1000°C	depends on configuration: relay I=1A, U=30V DC/250V AC (cosø=1) Open Collector: I=30 mA, U=30V DC, P=100 mW 0/4…20 mA: active current, operating range 0…24 mA max., load resistance 700 Ω max., resolution 13 bit 4…20 mA: passive current, isolated, operating range 2,8…24 mA max., load resistance 600 Ω@24VDC, resolution 13 bit 0/1…5V, 0/2…10V: active voltage, operating range 0…11V max., load resistance min. 2000 Ω, resolution 13 bit	View PDF

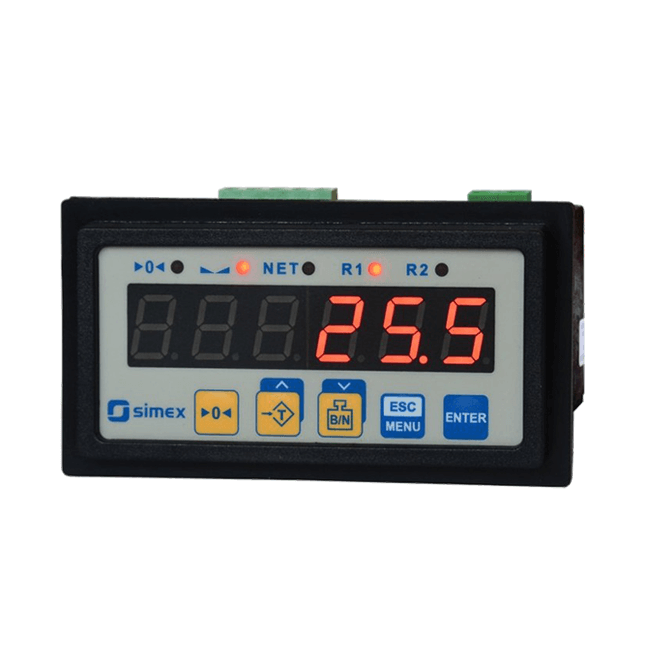

SWI-94

Weight meter to work with load cells in weighing and force measurement systems

Product Name: SWI-94 | Brand: Simex

Size	Input No. & type	Input Range	Output Type	Data Sheet
Display: LED, 6 x 13 mm, red Case: 96 x 48 x 100 mm	1 digital input 24V DC	Tensometer load cells 4-wire or 6-wire; programmable sensitivity selectable up to 2 mV/V or 4 mV/V; load cells power supply: 4,6 V ± 10%, Imax ~ 60 mA, min. resultant impedance of 80Ω	relay 5A/250V AC (resistance) relay 3A/250V AC (reactance) Open Collector: I=30 mA, U=30V DC, P=100 mW 0/4…20 mA: active current, operating range 0…24 mA max., load resistance 700 Ω max., resolution 13 bit 4…20 mA: passive current, isolated, operating range 2,8…24 mA max., load resistance 600 Ω@24VDC, resolution 13 bit 0/1…5V, 0/2…10V: active voltage, operating range 0…11V max., load resistance min. 2000 Ω, resolution 13 bit	View PDF
